Description
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, Smart Solar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. Smart Solar maintains battery health, extending its life.
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remotely control and monitor the extensive features of your Smart Solar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via Victron Connect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby.

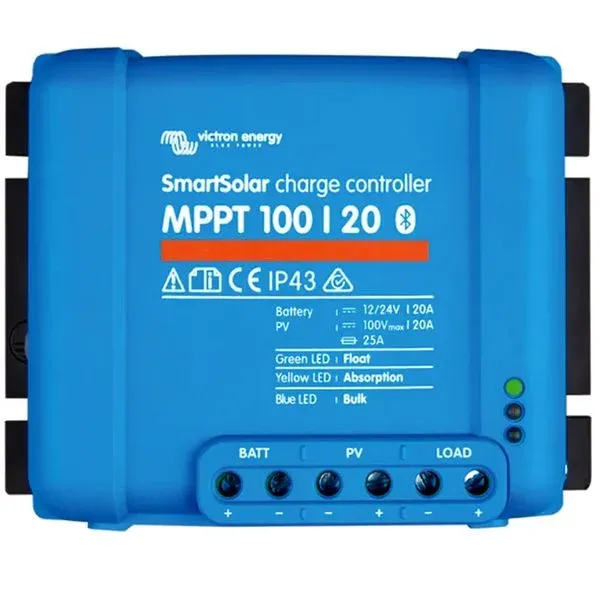

This Smart Solar MPPT Regulator will handle a maximum of 100V and 20A of solar panel output
| Application | FLA, SLA, AGM, GEL, LiFePO4 Batteries |
| Charge Characteristic | Automatic, adaptive |
| Charge Current | 20A |
| Efficiency | 98% |
| Height | 98.6mm (3.88″) |
| Operating Temperature | -30°Cto +60°C |
| External Temperature Sensor | Optional, via bluetooth |
| Voltage | Max. PV Input: 150V DC, 12/24V Self Sensing Output |
| Weight | 0.65kg |
| Width | 131mm (5.1″) |
| Brand | Victron |
| Number of Outputs | 1 + load |
| Additonal Float Charge Output | No |
| Optional Remote Panel | Yes, via bluetooth |
| Cables Included | No |
| Nominal PV Power | 290W @ 12V, 580W @ 24V |
| Depth | 64mm (2.5″) |
Datasheet SmartSolar charge controller MPPTManual SmartSolar charge controller MPPTWhich solar charge controller PWM or MPPT
