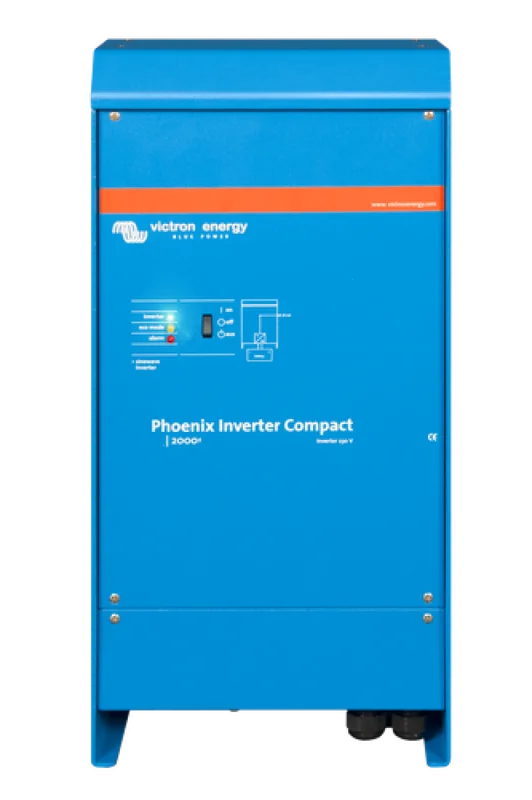

Victron Phoenix Compact 24V, 2000VA 230V

Description

Victron Phoenix Compact 24v, 2000va 230v Sine wave Inverter. Can be parralled in single and three phase. (CIN242020000/CIN242200000)

Product Information

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax – Superior engineering

Developed for professional duty, this range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability

Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.

Models:

1200VA – 5000VA

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power.

Computer interface

All models have a RS-485 port.

Datasheet – Phoenix Inverter 1200VA – 5000VA – rev 03 – EN

Manufacturer Part Number: CIN242200000
