Description

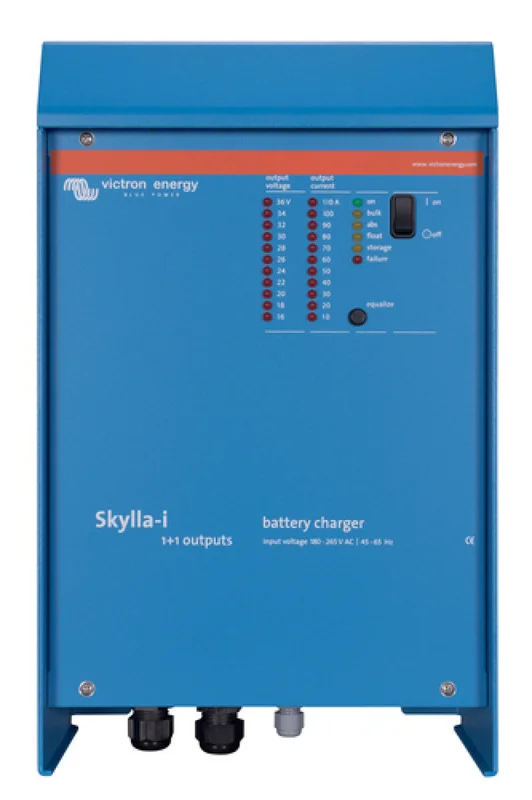

Victron Skylla – I 24 volt 100 amp battery charger, c/w temperature sensor. (SKI024100000) 34 x 24 x 50
Product Information
A modern and powerful battery charger.
- The right amount of charge for a lead-acid battery: variable absorption time
- BatterySafe mode: preventing damage due to excessive gassing
- Storage mode: less maintenance and aging when the battery is not in use
- Smaller and lighter compared to similar models
- NMEA 2000 Canbus connection
- PowerControl: set a maximum shore power
- Remote Control
- Li-ion (LiFePo4) ready
Models:
24 Volt
Skylla-i (1+1): two outputs to charge 2 battery banks
The Skylla-i (1+1) features 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.
Skylla-i (3): three full current outputs to charge 3 battery banks
The Skylla-i (3) features 3 isolated outputs. All outputs can supply the full rated output current.
Rugged
Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air.
Flexible
Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use.
Synchronised parallel operation
Several chargers can be synchronised with the CAN bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP-cables.
Important features
The right amount of charge for a lead-acid battery: variable absorption time
Preventing damage due to excessive gassing: the BatterySafe mode
Less maintenance and aging when the battery is not in use: the Storage mode
Temperature compensation
Battery voltage sense
Suitable for AC and DC supply (AC-DC and DC-DC operation)
Use as a power supply
Li-Ion (LiFePO4) ready
Please see the datasheet in the Additional Information for more details and to compare models.
Datasheet-Skylla-i-EN
Manufacturer Part Number: SKI024100000
