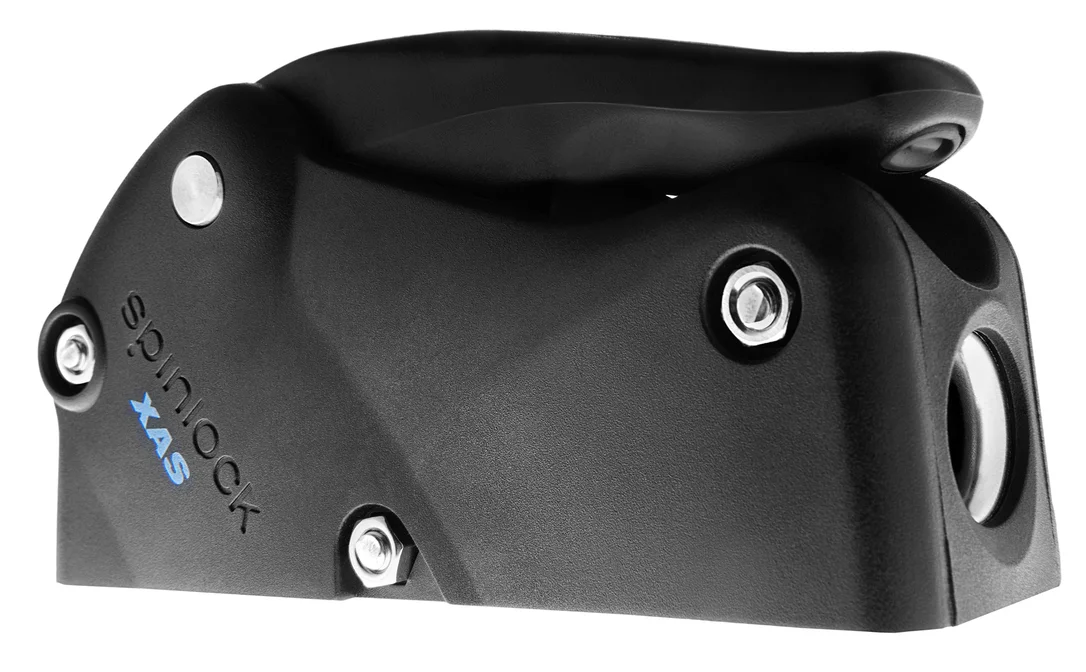

XAS – Effortless multi-role clutch by Spinlock

Description

Multi role clutch with excellent performance across a wide rope range. Perfect for racing yachts up to to 27′ and cruising yachts up to 35′.

• Superb all round performance
• High strength, soft grip ergonomic handle
• Modular design: easy to upgrade and maintain
• Effortless release
• Line-friendly grip profile
• Excellent performance, small diameter version for 4-8mm versions
• XAS0408 (4-8mm) for high performance on small diameter lines
• XAS0612 (6-12mm) for superb performance across the rope range
• Side-mountable options available on either side with fairing kit XAS-SMNT
• Endless line version available
• Handle labels supplied
• XAS0408 for 4-8mm line gives optimised clutching and holding power on small diameter lines.
• Strongly recommend for sportsboats and other small boat high performance applications.

Standard XAS0612 can be converted for small diameter lines by using base module XAS-BASE0408

XAS Service Kit for 4-8mm linesXAS Service Kit for 6-12mm linesXAS0408Lines: 4mm – 8mm (5/32″ – 5/16″)
Loads up to 400kg (880lbs)

XAS0612Lines: 6mm – 12mm (1/4″ – 1/2″)
Loads up to 575kg (1270lbs)

Endless Line XAS/MSolves the problem of loading a continuous furling lineThese clutches are supplied as kits with open bullseyes to be assembled directly onto the line

Side MountingSide mounting is usually the neatest solution for spars, side decks and coamingsWeightsXAS Single – 270g (9.5oz)XAS Double – 500g (17.5oz)XAS Triple – 680g (23.8oz)

FastenersXAS Single – 2 x M6 (1/4″) CSK Head (not supplied)XAS Double – 4 x M6 (1/4″) CSK Head (not supplied)XAS Triple – 6 x M6 (1/4″) CSK Head (not supplied)

• Rope Holding Table
• XAS Clutch Installation & Use Instruction
• XAS Side Mount Port Drill Guide
• XAS Side Mount Starboard Drill Guide
• XAS Drill Guides
