Description

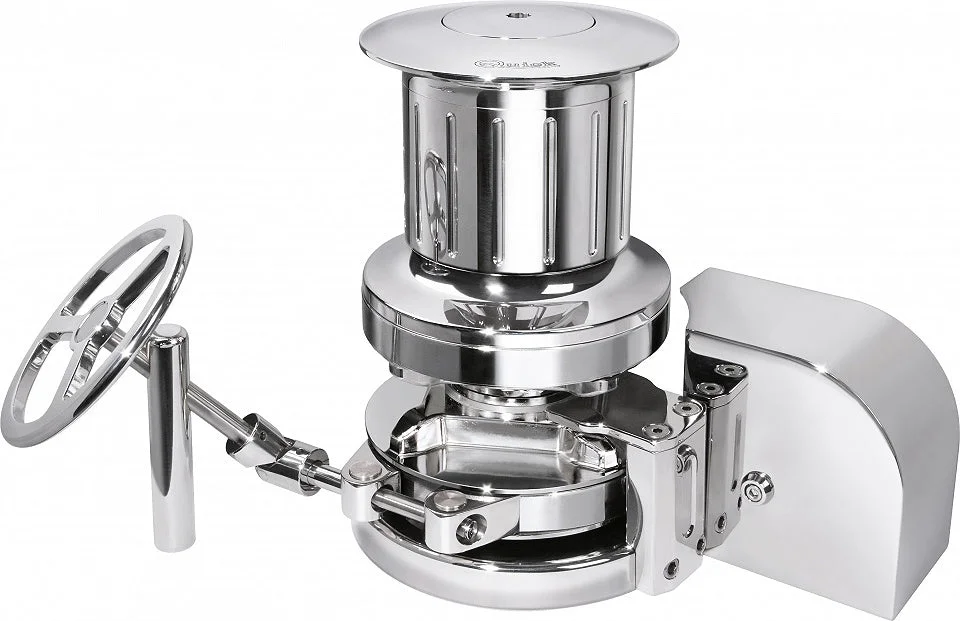

- Vertical windlasses
- Stainless steel Aisi 316 base, drum and gypsy cover
- Integrated sensor and magnet for chain counter
- Gypsy band brake with mobile fixing block
- Gearbox in triple-layer painted cast iron
| XR8 | 5500 W AC | 32 – 41 m | 105 – 135 ft |
| XR8 | 7500 W AC | 32 – 50 m | 105 – 165 ft |
| XR8 | HYDRO | 32 – 50 m | 105 – 165 ft |
The whole XR series is equipped with the gypsy band brake with mobile fixing block allowing to steer the hand wheel in several possible positions.
| Gypsy and Drum | Ø 300 mm/ 11″ 13/16 |
| GYPSY | 16 mm | 17,5 mm | 19 mm | 20,5 mm | 22 mm |
| CHAIN | 16 mm | 17,5 mm | 19 mm | 20,5 mm | 22 mm |
| STUDLINK | STUDLINK | STUDLINK | STUDLINK | STUDLINK |
| Standard version | XR8 AC 5500 X/Y |
| Motor power | 5500 W AC |
| Motor supply voltage | 230/400 V THREE-PHASE* |
| Maximum pull | 4500 Kg 9921 lb |
| Maximum working load | 2500 Kg 5511 lb |
| Maximum chain speed | 14,5 m/min 47.5 ft/min |
| Weight – XROY – [with drum] | 297 kg 654 lb |
(*) On request available 230V Single-phase motor (for power up to 3000W)
Dimensions
Supplied accessories standard
| Stainless Steel handle |
Optional accessories
|
Brake control |
Pipe chain |
Chain stopper |
| Electric drive systems |
electric connection |
Foot |
handheld |
Chain |
Radio remote |
| UP/DOWN
control board |
Proportional control |
