Description

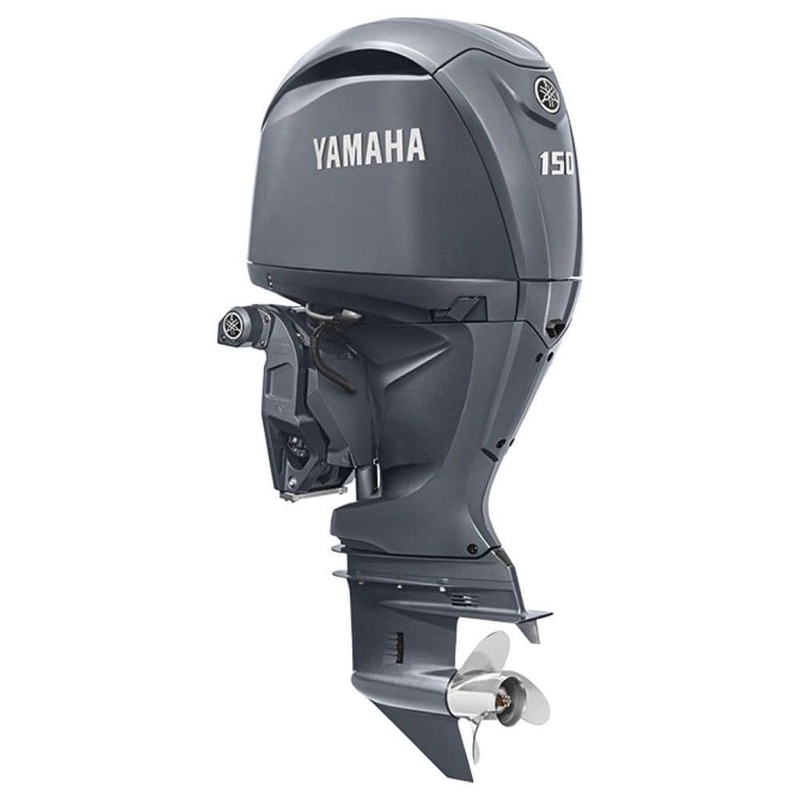

Yamaha F150LSA
Drive By Wire Remote Control | Electro Hydraulic Steering | Electric Start | Power Trim And Tilt | 242kg
This new unit offers fresh styling and modern design, aligning the aesthetics of the Premium and High Power segments. The design cues and graphics on this engine are all pointers to the exciting technology that lives just inside.
The 150hp engine benefits from enhanced connectivity for greater control and confidence, linking with Helm Master EX®, Yamahas latest CL5 gauge and the latest Drive-by-Wire throttles for smooth shifting, with single and multiple engine throttles available
Technical Engine Specifications:
Engine type: 4-stroke
Displacement: 2785 cm³
No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
Bore x stroke: 96.0 mm x 96.2 mm
Prop shaft output at mid range: 110.3kW / 5,500 rpm
Full throttle operating range: 5,000 – 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Gear ratio: 1.86 (26/14)
Dimensions:
Recommended boat transom height: L 516 mm
Weight with propeller: F150LSA: 242 kg
Oil pan capacity: 4.5 litres
Features:
Steering: Integrated Electro Hydraulic Steering (EHS)
Control: Drive By Wire Remote Control / Throttle and Gear (DBW RC)
Starting Method: Electric Start (ES)
Trim and tilt method: Power trim and tilt (PTT)
Battery Charging: 12v – 50A Output
Propeller: Included
Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits” Section View Section
