Description

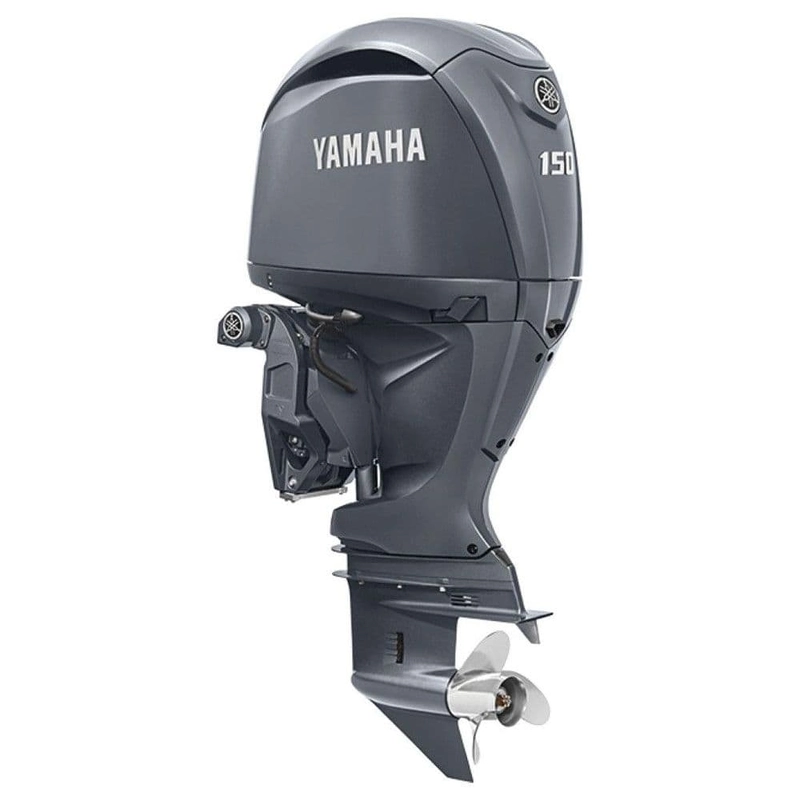

Yamaha F150XD
Mechanical Remote Control | Integrated Hydraulic Steering | Electric Start | Power Trim And Tilt | 245kg
This new unit offers fresh styling and modern design, aligning the aesthetics of the Premium and High Power segments. The design cues and graphics on this engine are all pointers to the exciting technology that lives just inside.
Chase down some high-power adrenaline rushes as the 150hp comes with a four-cylinder configuration, delivering smooth acceleration.
Engine Specifications:
Engine type: 4-stroke
Displacement: 2785 cm³
No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
Bore x stroke: 96.0 mm x 96.2 mm
Prop shaft output at mid range: 110.3kW / 5,500 rpm
Full throttle operating range: 5,000 – 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Gear ratio: 1.86 (26/14)
Dimensions:
Recommended boat transom height: X 642 mm
Weight with propeller: F150XD: 245 kg
Oil pan capacity: 4.5 litres
Features:
Steering: Integrated Hydraulic Steering (IHS)
Control: Mechanical Remote Control / Throttle and Gear (MEC RC)
Starting Method: Electric Start (ES)
Trim and tilt method: Power trim and tilt (PTT)
Battery Charging: 12v – 31A Output
Propeller: Included
Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits” Section View Section
