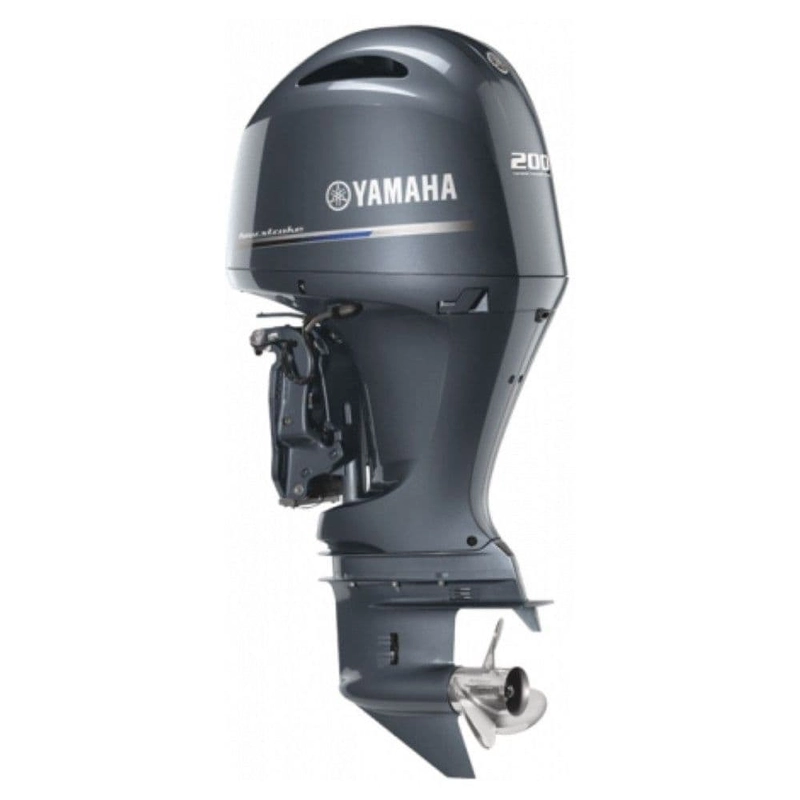

Yamaha F200XCA
Drive By Wire Remote Control | Electric Start | Power Trim And Tilt | 247kg
Choose Drive-by-Wire – it’s the smooth new option. For exceptional power and acceleration, this clean, quiet, EFI-equipped engine is tough to beat. Add a whole new level of smooth-shifting Drive-by-Wire performance – and you have the perfect choice.
Yamahas unique, fuel-efficient EFI system, micro-processor ECU, clean-burn technology and noise reduction systems are all designed to work seamlessly together, while the sophisticated diagnostic system shows engine and performance data via computer link, so maintenance is very quick – and simple.
Like all our EFI engines, the F175 can be linked directly to Yamaha’s exclusive network system, which means you can choose from a wide range of advanced digital gauges and instruments.
Engine Specifications:
Engine type: 4-stroke
Displacement: 2785 cm³
No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
Bore x stroke: 96.0 mm x 96.2 mm
Prop shaft output at mid range: 147.1kW / 5,500 rpm
Full throttle operating range: 5,000 – 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Starter system: Electric with prime start
Gear ratio: 1.86 (26/14)
Dimensions:
Recommended boat transom height: X 643 mm
Weight with propeller: F200XCA: 227 kg
Fuel tank capacity: N/A
Oil pan capacity: 4.5 litres
Additional features:
Control: Drive By Wire (DBW)
Trim and tilt method: Power trim and tilt
Lighting Coil / Alternator: 12V – 50A /31A with rectifier/regulator
Propeller: Included
Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits” Section View Section
