Description

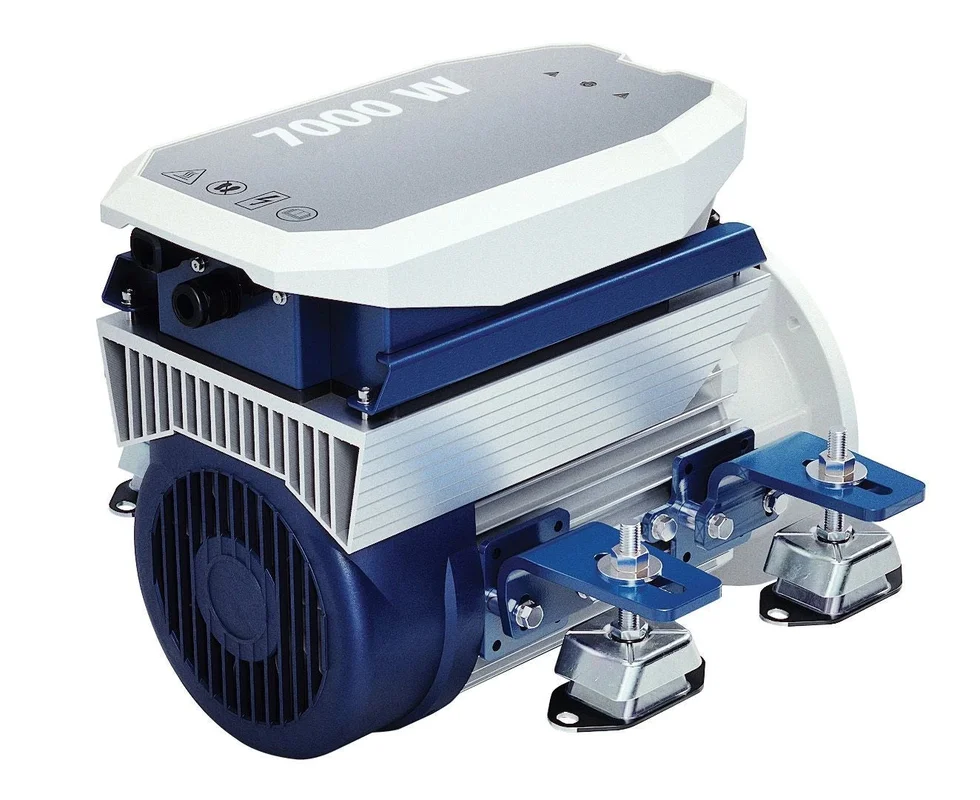

The E-line 7kW Inboard Electric Propulsion Motor is an air-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge andreduce energy consumption.
The Motor brings you peace and tranquility when cruising on the water without being distracted. Designed to be energy-efficient, the system requires less battery capacity compared to traditional electricmotors. This facilitates a more compact installation, without compromising on ensure performance and prevent overheating, the motor is equipped with an active air cooling system. This helps maintain a stable operating the cooling system fully integrated enhances overall user-friendliness and ease of installation. The motor features Active Electronic Braking, which offers rapid deceleration and precise control, enhancing safety and a peak powerof 8,6 kW, you’ll have the acceleration you desire. Whether you’re exploring open waters or navigating tight spaces, this motor will provide the responsiveness you need.
Supplied With
- Swap & Go motor brackets and motormounts type EMX65.
- Integrated thrust bearing.
- Mounting flange 4″ suitable for Combiflex 12, Bullflex type 1.
- MPE1KB key switch – all-in-one solution; V-CAN power supply, external 12 VDC power supply and anti-theft.
- MPE1MB V monitoring panel – V-CAN monitoring, battery indication, motor alarms and motor status.
- IV4812360 converting 48 VDC to the required V-CAN power supply 12 VDC.
Additional Parts Required
- One of the E-Drive V-CAN
Control Lever with different propulsion modes to enable the right power at the right moment.
Advanced MonitoringSets
- Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and postioning you can become the master of your vessel.
- Choose from a widevariety of
monitoring sets that suit your needs the best.
Specifications
| Max. speed (RPM) | 1450 |
| Max. speed (RPM) | 1450 |
| Max. torque (Nm) | 55 |
| Max. torque (Nm) | 55 |
| Motor type | Brushless induction motor |
| Motor type | Brushless induction motor |
| Voltage (V) | 48 |
| Voltage (V) | 48 |
| Indicative comparable combustion engine (hp) | 16 hp |
| Indicative comparable combustion engine (hp) | 16 hp |
| Indication for suitable boat length | Up to 8 meters (26 feet) or 5 ton |
| Indication for suitable boat length | Up to 8 meters (26 feet) or 5 ton |
| CAN bus | V-CAN |
| CAN bus | V-CAN |
| Maximum output power | 7,4 kW |
| Maximum output power | 7,4 kW |
| Maximum input current draw | 220 A |
| Maximum input current draw | 220 A |
| Indicative energy consumption | 1,1 kWh @ 6 km/u (3,5 knt) |
| Indicative energy consumption | 1,1 kWh @ 6 km/u (3,5 knt) |
| Cooling systems | Air-cooled |
| Cooling systems | Air-cooled |
| Weight (lbs) | 150 |
| Length (inches) | 21 |
| Height (inches) | 15 |
| Width (inch) | 20 |
| Weight (kg) | 68 |
| Weight (kg) | 68 |
| Length (mm) | 518 |
| Length (mm) | 518 |
| Height (mm) | 380 |
| Height (mm) | 380 |
| Width (mm) | 504 |
| Width (mm) | 504 |
