Description

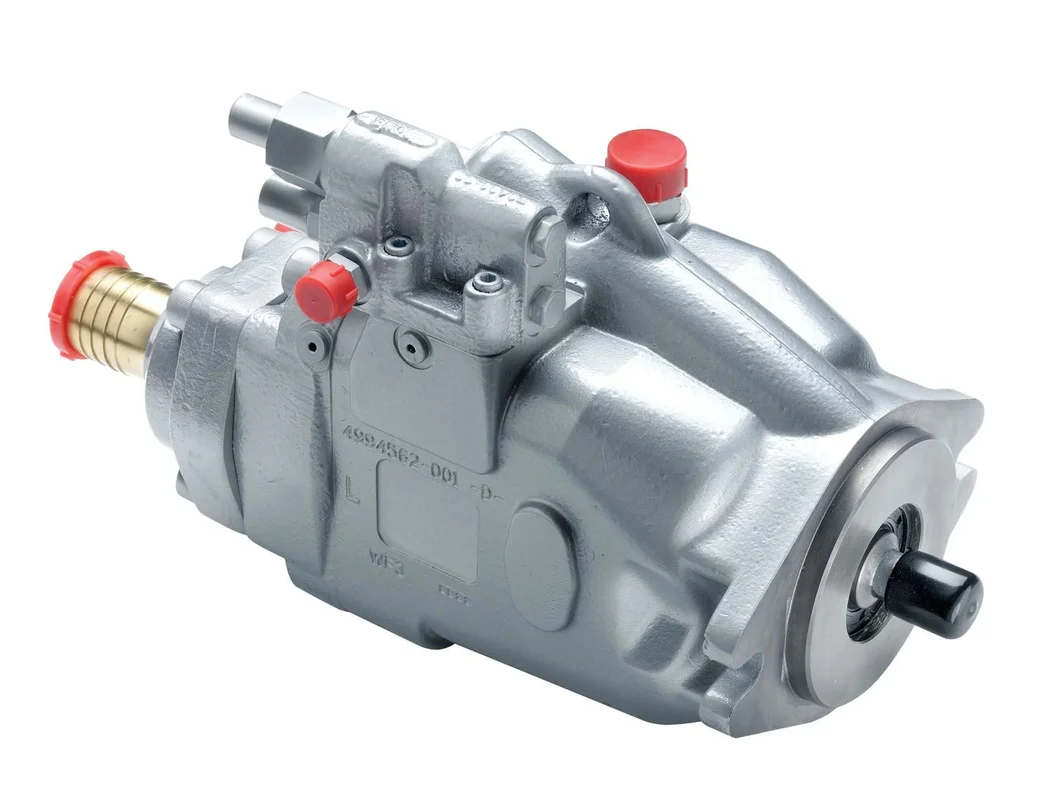

62 cc, right handedHydraulic load-sensing pump for mounting on the main or auxiliary engine. Low noise level thanks to cast-iron housing. SAE-B connection flange, drive shaft with 13-tooth spline. Pressure/suction connections at the rear.
Specifications
| Capacity (cc) | 62 cc (3.78 ). |
| Capacity (cc) | 62 cc (3.78 ). |
| Sense of rotation | RH – clockwise |
| Sense of rotation | RH – clockwise |
| Connections | SAE-B flange, 13 spline connection for suction and Twindisc gearboxes. |
| Connections | SAE-B flange, 13 spline connection for suction and Twindisc gearboxes. |
| Max. speed (RPM) | 2880 |
| Max. speed (RPM) | 2880 |
Support & manuals
Installation manual Hydraulic pumps HT
